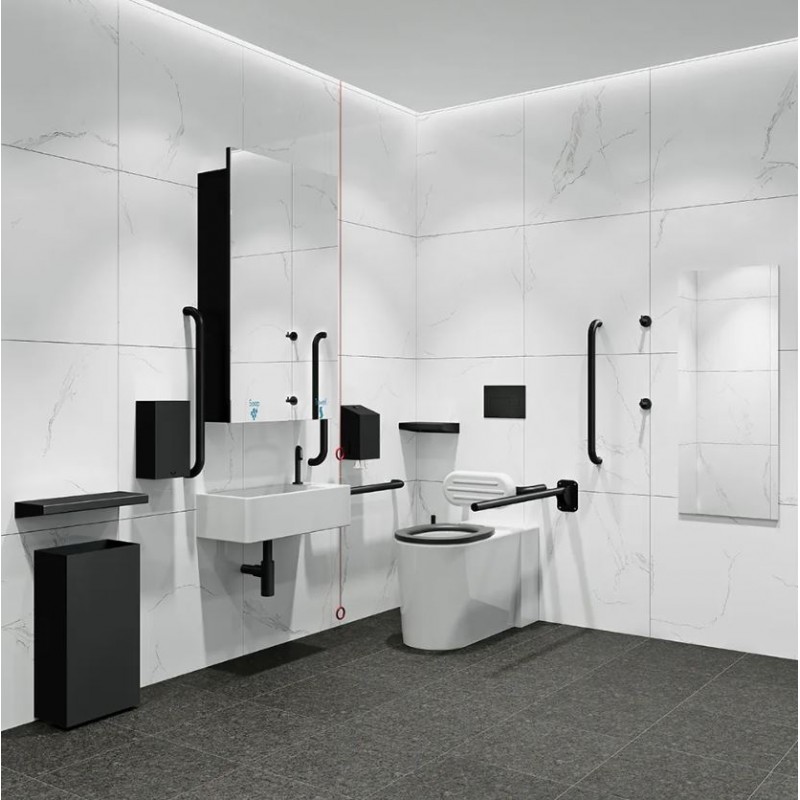

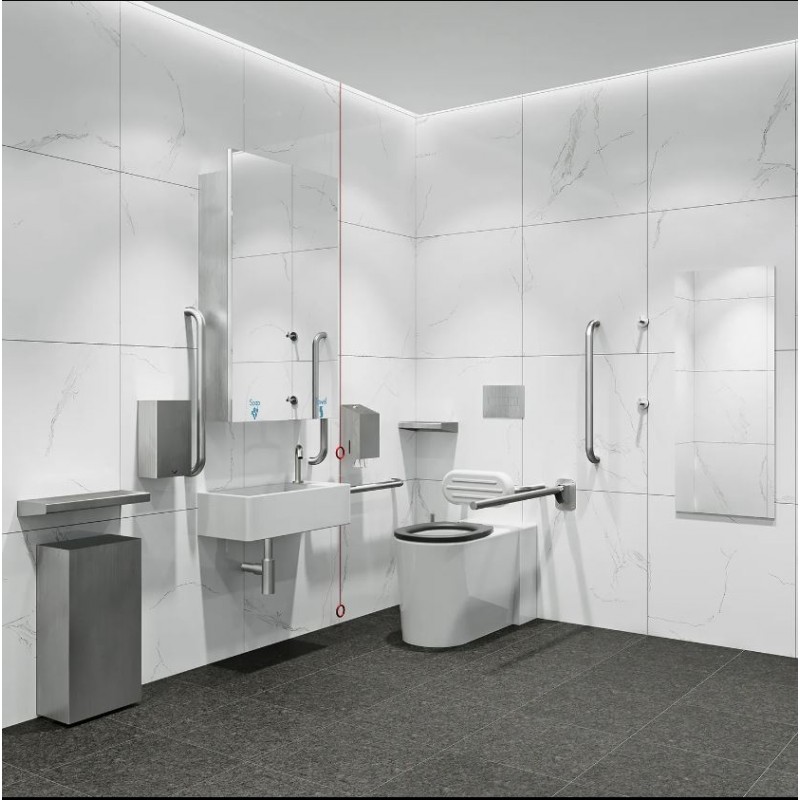

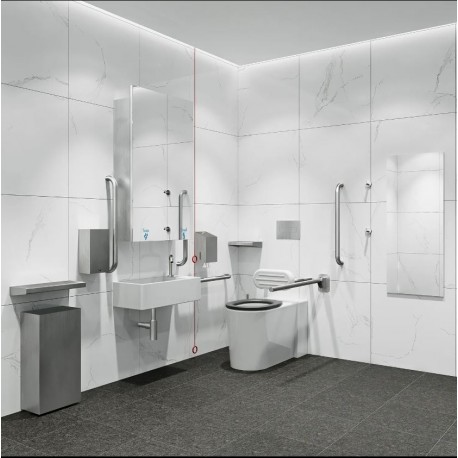

ALAVO DOC M WC PACK – BACK TO WALL

• Accessible ALAVO ensures consistency of design between the accessible washroom and other washrooms
• Includes the Alavo behind mirror handwash system, with all the incorporated benefits
• Wall mounted and Close coupled WCs are alaso available on request
• White toilet seat also available as an option - please contact the team for more information
• To assist blind or partially sighted persons in navigating the washroom there should be a contrast difference of 30 between the LRV (Light Reflective Value) of fixtures/fittings and surrounding surfaces as well as between floors, walls, doors and ceilings. Stainless steel fittings have an average LRV rating of between 39 and 45.

• AA0100 ALAVO Unit x1
• DS213.150.150 Tap x1
• AA0200 Basin x1
• DB790-316 Waste Trap x1
• DB794S Waste Grate x1
• BC4302 Toilet Tissue Dispenser x1
• BC9831SS Toilet Brush x1
• BC725 Coat Hooks x2
• BC2008 Hand Dryer x1
• BC951 Waste Bin x1
• BC750 400mm shelf x1
• BC751 200mm shelf x1
• BC5083-121 Alarm Pull Cord x1
• BC5063-02 Grab Bar 600 mm x4
• BC5063-01 Grab Bar 450 mm x1
• BC5023-07SS Drop Down Hinged Support Rail x1
• BC5064-10-WH Back Rest x1
• DB5510.P Concealed Cistern x1
• DB5550.P.1 Flush Plate x1
• DB590 Toilet Pan x1
• DB591-GRY Toilet Seat Ring - Grey Contrasting x1 (White WC seat available, but can cause noncompliance as it does not colour contrast with the pan)
• BC5083-101 Mirror 1000mm x 400mm x 1

Finishes -

Stainless Steel: AA1000

Powder Coated: AA1000.6.xx
